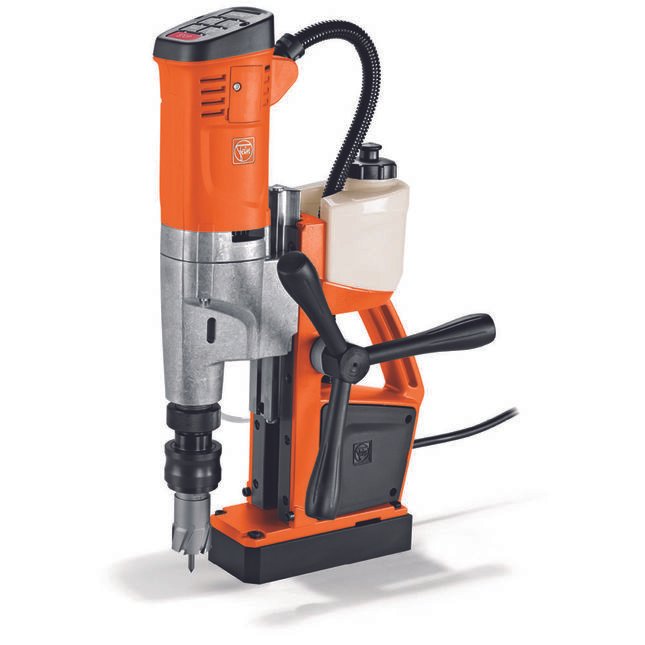

Fein KBU 35 MQW 1100W Magnetic Core Drill review — a compact pro-grade core machine

Overview

The FEIN KBU 35 MQW is a compact magnetic core drill aimed squarely at tradespeople and fabricators who drill frequently and need consistent, repeatable holes. It pairs an 1100W input motor with tacho electronics (for stable speed under load), a strong electro-magnet base and an industry-standard 3/4″ Weldon fitting. The design emphasises a good power-to-weight ratio, tool-free core bit changes and a level of versatility that allows the machine to be used for core drilling, twist drilling, tapping and reaming.

Put simply: this is a purpose-built machine rather than a light occasional-use tool. If your projects demand reliable anchoring to steelwork, controlled stroke and the ability to maintain speed under cutting load, the KBU 35 MQW is engineered for that job. Below I take a closer look at the features, practical considerations and whether it is a sensible buy given the alternatives (including simply buying a set of TCT core bits if you already have a compatible drill motor).

Who is this best for?

The Fein KBU 35 MQW suits a professional audience: site engineers, structural steel fabricators, mechanical contractors and workshop operatives who drill regularly and need a reliable, repeatable result. It’s especially relevant when you’re working on ferrous materials where the magnetic base can be used safely and effectively.

It is less appropriate if you only core-drill occasionally and cost is the primary concern. In those cases you might rent a machine or, if you already own a powerful drill with the right arbor, purchase a set of TCT core drill bits. Also note the magnetic base requires a steel surface to hold on; this machine won’t act as a solution for masonry, concrete or non-magnetic substrates unless you use an alternative anchoring method.

Key features

• 1100W input motor with tacho electronics to help maintain stable speed when under load.
• Industry-standard 3/4″ Weldon fitting (MT2 mounting) for compatible core bits and arbors.
• Magnetic holding power rated around 10,000 N with a 175 x 80 mm base footprint.
• Tool-free core bit changing for quicker workflow on-site or in the shop.
• Clockwise and anti-clockwise rotation along with electronic speed control to suit different cutters and operations.
• 260 mm total stroke range and a 4 m mains cable for flexible positioning.
• Weight approximately 11.0 kg, balancing portability with stability.

Practical evaluation

When you put the KBU 35 MQW into a workflow, the elements that stand out are the magnet strength, compactness and the motor control. The magnetic base is specified at around 10,000 N with a relatively small base plate (175 x 80 mm), which makes the machine useful where space is limited but you still need a secure anchor to the steel. That strong holding force reduces the risk of slips or chatter while cutting, which matters when accuracy is important.

The 1100W motor is a sensible middle ground: it’s powerful enough for common core-drilling tasks on steel and for driving shorter diameter core bits, while keeping the whole unit lighter and more manoeuvrable than larger industrial machines. The inclusion of tacho electronics is a practical advantage — it controls the speed electronically so the drill does not bog down as soon as you put it under load. That stability is particularly helpful if you’re switching between different materials or larger diameters within the machine’s capability.

Tool-free core bit changes are a small but meaningful convenience in a professional workflow. Quick changes reduce downtime and let you switch between tasks — for example, swapping a core bit for a twist drill or a tapping head — without faffing around. The 3/4″ Weldon fitting is an industry standard, so you have a wide range of compatible arbors and cutters available from other manufacturers too.

That said, the machine is not without practical limits. The name KBU 35 suggests a maximum working diameter of 35 mm for certain operations; manufacturers often size machines in this way, so larger diameter coring will need a different model or a separate arbor arrangement. As with all magnetic drills, it also depends on having a clean, flat and ferrous surface to attach to — very rusty, slotted or contoured surfaces will reduce magnetic holding power and require extra attention or a different approach.

Strengths

• Purpose-built stability: The combination of a strong magnet and tacho-controlled motor makes it a reliable option for repeatable, accurate holes in steelwork.
• Good power-to-weight balance: At roughly 11 kg, it’s portable enough for site use while delivering respectable cutting power for professional tasks.
• Workflow-friendly features: Tool-free bit changes, clockwise/anti-clockwise operation and an industry-standard Weldon fitting all help keep jobs moving.
• Versatility: Although classed as a core drill, it can also handle twist drilling, tapping and reaming with appropriate accessories and arbors.
• Practical cable length: A 4 m mains cable provides better reach on sites where mains access can be awkward.

Limitations

• Magnet-dependent anchoring: The magnetic base only works on ferrous, reasonably flat surfaces — it’s not a universal solution for masonry, concrete or stainless steel that isn’t magnetic.
• Maximum bit diameter: This model is suitable up to its rated size (indicated by the 35 designation). If you regularly need large-diameter cores you’ll need a larger machine or a different arbor arrangement.
• Higher initial cost: Buying a dedicated magnetic core drill is a bigger upfront investment than buying individual core bits or renting a machine for occasional use.
• Accessory needs: Depending on your work you may need to budget for arbors, coolants, stands or a suitable case — these aren’t always standard in every retailer package.
• Weight and bulk: Although the machine is compact for a magnetic drill, it’s still heavier and more involved to move than single-handed drills — consider storage and transport if you move between sites frequently.

Compatibility and accessories to consider

The 3/4″ Weldon fitting makes it straightforward to use a wide variety of core bits, arbors and reduction sleeves. If you intend to use TCT (tungsten carbide tipped) core bits or other specialised cutters, check the arbor and mounting arrangement first so the geometry and flute clearance are correct.

A few accessory considerations before you buy:

• Arbors and pilot drills — ensure the arbor size matches the Weldon fitting and that you have the correct pilots for accurate positioning.
• Coolant or cutting fluid — for prolonged cutting and to protect tools, coolant systems or at least supply arrangements will help, particularly on larger or thicker sections.
• Transport and storage — a reinforced case or a rack in your vehicle prevents knocks and keeps the machine ready to go on-site.
• Power supply — the KBU 35 MQW comes with a 4 m cable, but check site extension leads and RCD protection; heavy loads from long extension runs can affect performance.

When to buy the machine, and when to buy bits instead

Deciding between buying a dedicated magnetic core drill like the Fein KBU 35 MQW and buying a set of core drill bits (for use in a separate drill or rented machine) depends on how often and where you drill, plus the materials you work with.

Buy the machine if:

• You core-drill regularly and need a dependable machine on-hand rather than renting each time.
• Your work is primarily on ferrous materials where the magnetic base adds safety and accuracy.
• You value quick setup, tool-free bit changes and a single, well-supported machine for varied tasks (cores, taps, reaming).

Buy bits (or add to an existing drill) if:

• You only core-drill occasionally and prefer to keep upfront costs low by purchasing consumables rather than a dedicated machine.
• Your jobs are varied and frequently involve non-magnetic surfaces such as concrete or stone, where a magnetic drill won’t help.
• Space, weight and transport are critical and you already own a heavy-duty drill that can accept the arbors you need.

Pricing and value

The KBU 35 MQW is positioned as a professional tool and is reflected in the guide price quoted around GBP 1,099.00. That places it above basic or hobbyist magnetic drills but in line with commercial-grade machines that prioritise durability, warranty support and the features professionals expect.

Evaluating value depends on whether the machine replaces repeated hire costs, reduces downtime on site with faster set-ups and more reliable results, and whether having a purpose-built tool improves productivity. For contractors who drill daily or several times a week, owning a compact, stable magnetic drill can quickly pay for itself in saved time and reduced setup issues compared with improvised arrangements.

Bear in mind that the machine price may not include consumables or necessary accessories — arbors, pilot bits, coolant delivery or a suitable case are commonly purchased separately. These extras should be factored into your total cost of ownership.

Note: Offers and prices change regularly. Check current retailer prices, inclusion lists and warranty terms before buying.

Alternatives to consider

If the KBU 35 MQW looks like overkill or doesn’t quite match your requirements, here are practical alternatives to weigh up:

• Larger magnetic core drills: If you often need large diameter holes, a bigger magnetic drill with a higher-rated magnet and larger stroke will be more suitable.
• Compact handheld core drills: For occasional use on lighter materials, a simpler handheld core drill or a powerful hammer/drill with the correct arbor can be more economical.
• Dedicated core bit sets (TCT or diamond): If you already have a suitable drill motor or if most work is on concrete/masonry, buying TCT or diamond core bit sets and using them with an appropriate drill or rented rig can be the cheapest route.
• Hiring: If core-drilling is strictly occasional, hiring a machine per job avoids the capital outlay and storage concerns — just ensure the hired unit meets the job’s magnet and arbor requirements.

Final verdict

The Fein KBU 35 MQW is a compact, thoughtfully specified magnetic core drill for professionals who need reliable, repeatable holes in ferrous materials. Its 1100W tacho-controlled motor keeps speed steady under load, the magnet provides substantial holding force for a small footprint, and the 3/4″ Weldon fitting plus tool-free bit changes make it a versatile addition to a tradesperson’s toolkit.

It’s not a universal solution — the magnetic anchor restricts it to ferrous substrates and the unit is sized for a specific maximum core diameter — but for on-site fabricators, steel erectors and engineers who work frequently with steel, it represents a pragmatic investment. The higher initial cost is offset by time savings, better repeatability and a professional fit-and-finish that you notice over repeated jobs. If your workflow is more occasional or you primarily cut concrete/masonry, consider buying core bits and using a compatible drill or hiring a machine instead.

Overall, the KBU 35 MQW is a solid choice where a compact, portable magnetic core drill is needed and where the work justifies owning a dedicated machine rather than relying on ad-hoc solutions. As always, check current prices, details of what’s included and any warranty or support options with the retailer before committing.
