Twotrees 5pcs Nema 17 17HS8401S stepper motors review

Overview

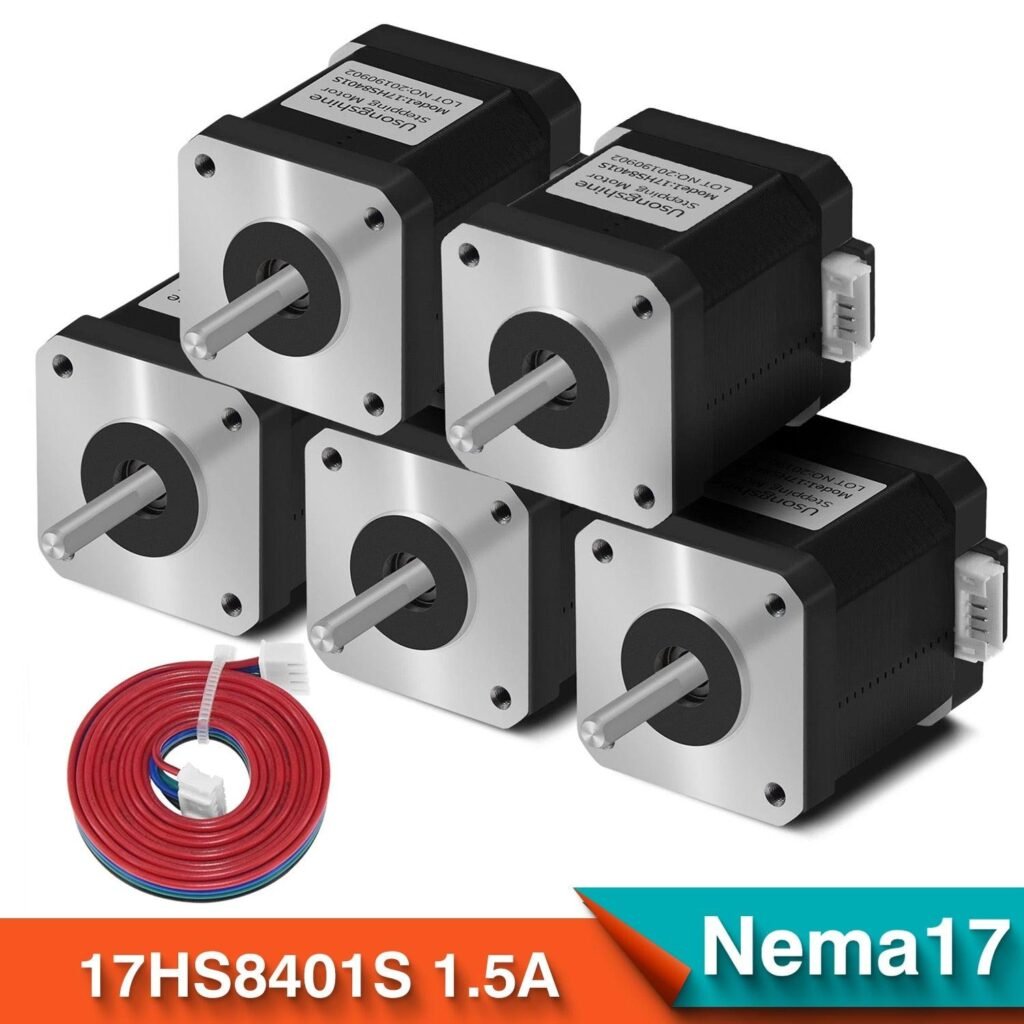

The Twotrees 5pcs Nema 17 4‑lead Stepper Motor (model 17HS8401S) is a bundle of five identical hybrid stepper motors sold together with a 1m Dupont cable. These are classic NEMA 17 form‑factor motors with a 1.8° step angle, two‑phase construction and a rated current of 1.5A per phase. Twotrees markets them for small CNC machines, desktop laser cutters and hobby 3D printers where multiple matched motors are often required.

What you get is simplicity and familiarity: a common step angle, a moderate holding torque figure, standard bipolar 4‑wire wiring and a small cable to get you started. The pack format is aimed at builders who need several matched axes or spares at once.

Who is this best for?

This kit is well suited to hobbyists, makers and anyone building entry‑to‑mid level desktop CNC, laser or 3D printing equipment who needs multiple identical motors. Because the pack contains five motors, it’s particularly handy for people building machines with three or more axes, or for workshops that prefer to keep spares on hand.

It also makes sense for DIYers who want a simple motor with conventional NEMA 17 mounting and a 4‑wire bipolar configuration — the kind of motor that integrates with popular stepper drivers and controller boards. If you need high torque for heavy gantries or industrial machinery, or specialised motors with integrated encoders or closed‑loop control, this bundle may be less suitable.

Key features

• Model: 17HS8401S, NEMA 17 (42 mm) frame size
• Step angle: 1.8° (200 steps per revolution)
• Phase: 2 (hybrid stepper)
• Rated current: 1.5A per phase
• Holding torque: specified as 0.4 Nm
• Insulation resistance: 100 MΩ minimum at 500 VDC
• Compliance: CE, RoHS (and references to ISO in the product listing)
• Pack: five motors plus one 1m Dupont cable

Practical evaluation

You don’t need to be an expert to understand where a NEMA 17 stepper like the 17HS8401S fits. The NEMA 17 form factor is commonly used in small CNC routers, hobby laser cutters and most desktop 3D printers. The 1.8° step angle is the standard for precise positioning without resorting to microstepping for every application.

With a rated current of 1.5A per phase and a quoted holding torque of 0.4 Nm, these motors sit in the mid‑range for NEMA 17s. That means they deliver enough torque for light to moderate axis loads — think small printer carriages, lightweight router spindles, or laser heads on compact frames. They are not, however, a direct replacement where high continuous torque is required for heavy gantry systems without gearing or mechanical advantage.

Wiring is straightforward: the motors are four‑lead bipolar devices, so they work with the widely used chopper drivers such as the A4988 family, DRV8825 and many modern equivalents. As with any stepper motor, it is important to set the motor driver current limit appropriately to match the 1.5A per phase rating; doing so protects the motor and avoids overheating. Also consider your power supply: while the motor current rating is 1.5A, the required supply voltage depends on your driver and desired speed/torque profile — consult the driver documentation rather than making assumptions based on motor current alone.

One practical benefit of buying a five‑pack is consistency. Using identical motors on every axis makes tuning and microstepping behaviour more predictable and reduces the chances of mismatched performance between axes. The included 1m Dupont cable is handy for breadboard‑style setups or temporary wiring; for a permanent installation you’ll likely want to solder or use reliable crimped connectors and heat shrink for strain relief.

Thermal considerations matter. Running motors near or at their rated current for long periods can generate heat. Allow adequate ventilation and consider motor cooling or duty cycling if your application runs continuously. If your controller supports microstepping, using it can reduce resonance and produce smoother motion at the expense of top‑end torque.

Strengths

• Good pack value for builds requiring multiple identical motors — no need to source several single units separately.
• Conventional NEMA 17 size and 1.8° step angle make integration simple with standard mounts and firmware profiles.
• Moderate holding torque and a 1.5A rating suit many hobby CNC and 3D‑printing uses.
• CE and RoHS markings indicate some level of regulatory compliance for electrical safety and environmental standards.
• The included Dupont cable is useful for initial wiring and testing.

Limitations

• Holding torque (0.4 Nm) is modest; heavier or high‑speed CNC gantries may need higher‑torque motors or gearing.
• Physical shaft length, shaft diameter and motor body length vary between NEMA 17 subtypes — check detailed dimensions with the retailer before assuming a fit.
• Dupont cables are fine for prototyping but are not the most robust choice for permanent installations or vibration‑prone environments.
• No integrated encoder or closed‑loop control — if you need position feedback, you’ll need to add it separately.
• The motor’s origin is Mainland China; while this is common for stepper motors, buyers who require traceable manufacturing details should check documentation from the retailer.

Installation and compatibility tips

Before you fit these motors into a build, check three practical points: mechanical fit, electrical compatibility and cooling.

Mechanically, confirm the mounting holes and shaft dimensions match your mounts and couplers. NEMA 17 indicates the faceplate size, but motor body length and shaft diameter can vary between models; these details are essential when selecting couplers, pulleys and motor brackets.

Electrically, set your stepper driver’s current limit to match the motor’s 1.5A per phase rating. If your board or firmware allows motor current tuning and microstepping adjustments, take the time to tune them — microstepping gives smoother motion, while reducing current a little can lower heat at the cost of torque. Use stepper drivers that implement current chopping and thermal protection for peace of mind.

On heat, give the motors space and ventilation. If you plan on long continuous runs or sustained high speeds, consider small aluminium heatsinks or periodic cool‑down intervals. Vibration dampers and anti‑backlash couplers can also reduce noise and wear in motion systems.

Maintenance and longevity

Stepper motors are generally low maintenance. Keep the motor and surrounding area free of dust and debris, ensure mounting screws remain tight, and periodically check connectors for corrosion or looseness. If a motor becomes hot to the touch in normal duty, check that the driver current is correctly set and that the motor ventilation is adequate.

Because you’re buying a pack of five, keeping one or two as spares is a sensible strategy: if an axis starts misbehaving, swapping in a fresh motor helps determine whether the issue is electrical, mechanical or firmware‑related.

Pricing and value

The product listing includes a guide price of USD 55.00 for the five‑pack. That guide price suggests the bundle is positioned as a cost‑effective option when multiple motors are needed, rather than a premium specialised motor.

Bear in mind that prices and offers can change. Shipping, taxes, import duties and retailer promotions will affect the final purchase cost, so check the retailer page for the latest price and availability before you buy.

Alternatives

If you’re considering the Twotrees 5‑pack, you may also want to weigh a few alternative directions depending on your needs:

• Single higher‑torque NEMA 17s or longer‑body variants — these are useful if you need more holding force for a single axis rather than multiple standard motors.
• Integrated encoder or closed‑loop stepper motors — if position accuracy under load or missed steps are a concern, closed‑loop options can improve reliability at extra cost and complexity.
• Stepper motors from established industrial brands — they often offer more detailed datasheets, longer warranties and consistent long‑term supply if you’re shipping products commercially.
• Servo motors — for high‑speed or high‑torque applications, brushless DC servos provide better continuous torque and closed‑loop control, but require different controllers and mechanical couplings.

Choosing an alternative depends on whether you prioritise cost, torque, integrated feedback or industrial support. The Twotrees pack targets hobbyists and small‑scale builders who need several familiar NEMA 17 motors rather than a specialised single‑axis solution.

Final verdict

The Twotrees 5pcs Nema 17 17HS8401S bundle is a practical, straightforward choice for makers and hobbyists building small CNC machines, lasers or 3D printers who need multiple matched motors. The motors provide a common 1.8° step resolution, a familiar NEMA 17 footprint and a moderate holding torque suitable for light to medium loads. The five‑pack format is convenient and can simplify spares management and tuning consistency across axes.

These motors are not aimed at heavy industrial use or applications where high continuous torque or closed‑loop feedback is essential. You should verify mechanical dimensions, ensure appropriate driver and power supply selection, and be prepared to upgrade connectors and wiring for a robust long‑term installation.

Overall, if you want a budget‑aware set of conventional NEMA 17 steppers to use in hobby CNC or printer projects, the Twotrees pack is worth consideration — just double‑check the fit and electrical match for your machine before committing to a purchase. And remember: offers and prices can change, so check the retailer page for the latest availability and terms.
