VEVOR Electric Hoist Support Arm (600 kg): Heavy‑Duty Swing‑Arm for Workshops and Garages

Overview

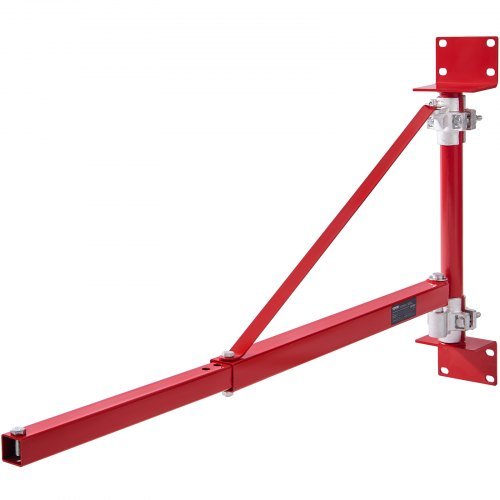

The VEVOR Electric Hoist Support Arm (model DHZJ‑300/600KG) is a heavy‑duty mounting solution for winch‑style electric hoists. Built from carbon steel with a triangular brace for extra rigidity, this arm offers a 600 kg (around 1,322.78 lb) maximum load rating on the larger square swing arm, a 180° swivel for flexible positioning and an extendable inner tube for extra reach. It’s clearly aimed at serious garage and workshop tasks where higher lifting capacity and a robust mounting structure are required.

This review examines where the arm makes sense, the practicalities of installation and everyday use, plus strengths, weaknesses and sensible alternatives. It’s based on the manufacturer’s specifications and common workshop practice; it doesn’t assume hands‑on testing.

Who is this best for?

The VEVOR swing arm is aimed at people who regularly lift heavy items in a fixed workspace and need a durable, stable mounting point for an electric winch hoist. Typical users include small commercial workshops, motorcycle or engine rebuilders, agricultural maintenance sheds and DIY enthusiasts with a clear requirement for a higher safety margin when lifting.

If your jobs involve loads approaching a few hundred kilograms, frequent use, or awkwardly positioned lifts that benefit from a wide swing and extra reach, the 600 kg rating and 180° swivel make this a practical and flexible choice. Conversely, if you only lift light items occasionally — for example domestic garden equipment or small engine parts under 100 kg — this arm may be heavier and more robust than you need.

Key features

• 600 kg maximum load on large swing arm — a high capacity for workshop tasks, offering a substantial safety margin compared with lower‑rated arms.
• Carbon steel construction with triangular brace — the frame design increases rigidity and helps resist flexing under load.
• 180° swivel — allows wide positioning options so you can move the hoisted load across a broader work envelope without re‑mounting the hoist.
• Extendable inner tube — the inner tube extends roughly 365 mm, giving extra reach for awkward lifts.
• Universal end tube for winch hoists — designed to accept standard winch‑style hoist fittings, though you should verify compatibility with your specific hoist.
• Substantial build weight — the arm weighs about 18.2 kg and is a substantial, solid component that needs two people to handle safely during installation.

Practical evaluation

On paper the VEVOR arm is straightforward: a heavy, rigid steel frame that gives you a stable mounting point and a long swing range. In everyday workshop use, that rigidity and load capacity translate to reduced movement and greater confidence when lifting heavier items such as engines, transmissions, heavy gearboxes, or larger assemblies.

The 180° swivel is particularly useful if you need to move a lifted component from one workbench or bay to another without re‑rigging. Where ceiling space or horizontal clearance is limited, the swing arm lets you park the hoist out of the way and bring it round when needed.

That said, the arm’s practical performance depends heavily on how and where you mount it. Because the arm creates significant leverage, the mounting point must be strong and secure — a suitably rated steel support, a robust timber or masonry wall with proper fixings, or an appropriately engineered column. Installing it to a simple stud wall or thin ceiling joists without reinforcement risks failure under load and is not recommended.

Handling the arm is another consideration. At roughly 18.2 kg it isn’t awkwardly heavy, but the size and shape mean two people are advisable for safe manoeuvring and accurate alignment during installation. If you plan to retrofit the arm to an existing structure, factor in the labour and any reinforced mounting plates or brackets that might be needed.

Strengths

• High load capacity — the 600 kg rating is well suited to demanding workshop lifts and gives a comfortable margin for heavier jobs.
• Solid construction — carbon steel and triangular bracing improve stiffness and reduce flex compared with lighter arms.
• Wide swing range — 180° rotation makes positioning and moving loads across a work area much easier.
• Extendable reach — the inner tube extension adds flexibility for many lifting situations, particularly when you need extra reach from the mounting point.
• Value for purpose — for a heavy‑duty arm, it provides the core features most workshops need at a reasonable guide price; it’s a pragmatic option where performance and strength matter more than saving a few pounds.

Limitations

• Installation requirements — due to the arm’s weight and leverage, it needs a very secure mounting point and at least two people to install safely. If your premises can’t provide a suitably strong fixing, additional structural work will be needed.
• May be overkill for light use — if you only lift small items occasionally, a lighter swing arm or portable gantry might be a better fit and easier to install.
• Compatibility checks needed — the end tube is broadly universal for winch hoists, but not every hoist will fit every mounting without an adapter. Confirm the attachment diameter and clearances with your hoist before buying.
• Possible missing hardware — some packages may not include all installation fixings or specialised bolts; check the retailer listing carefully and budget for any additional fasteners or plates you might need.
• Price and availability — guide price information is given for orientation, but markets change. Check current availability and the retailer’s details before purchase.

Pricing and value

VEVOR positions this swing arm as a heavy‑duty, no‑frills mounting option. The guide price is listed for reference and indicates it sits toward the affordable end of serious workshop equipment when compared with bespoke engineered hoist supports or custom steelwork.

Value depends on context. If you need the 600 kg capacity, the triangular bracing and 180° rotation give practical benefits that justify the cost. For lighter, occasional lifting tasks the arm’s robustness can feel unnecessarily expensive when a smaller or portable solution would do. Remember to factor in installation costs: if you need mounting plates, reinforced beams or professional installation to meet safety standards, that will add to the total outlay.

Finally, check exactly what’s included in the box. Some buyers find they need additional bolts, washers, or an adapter sleeve to match their hoist. Factor those potential extras into your total budget.

Alternatives and when to consider them

While this review focuses on the VEVOR 600 kg arm, it’s worth thinking about other routes depending on your needs:

• Lighter swing arms (lower capacity) — for hobbyists or home garages that lift up to 100–200 kg occasionally, a lighter swing arm or a smaller wall‑mount can be cheaper and easier to install.
• Portable gantries and engine cranes — if you need mobility rather than a fixed mounting point, a portable gantry gives the freedom to move the lifting system around your workspace, though capacity and stability vary.
• Custom/commercial mounting solutions — for frequent, heavy use in a commercial setting, investing in a professionally engineered column or beam‑mounted system may be safer and more durable in the long term.
• Dedicated overhead track systems — where a wide coverage area is required, overhead tracks or monorails offer maximum flexibility but typically need a higher initial outlay and professional fitment.

Choosing between these options comes down to how often you lift, the weights involved, whether you need portability, and how much structural modification you’re willing to undertake. The VEVOR arm sits squarely in the middle as a cost‑effective fixed solution for heavier workshop needs.

Final verdict

The VEVOR Electric Hoist Support Arm (600 kg) is a solid, practical choice if you need a high‑capacity, fixed mounting point for a winch‑style electric hoist. Its carbon steel construction, triangular bracing and 180° swivel give it the features most workshop users want: rigidity, a generous load rating and flexible positioning. The extendable inner tube further increases its usefulness for awkward lifts.

However, it’s not a universal solution. You must plan the installation properly: the arm creates significant leverage and needs a secure, correctly rated mounting point. Two people are recommended for handling at fitment, and you should double‑check hoist compatibility and what installation hardware is supplied. For light occasional lifting, smaller or portable options may provide better value and require less structural preparation.

In short, if your garage or workshop regularly handles heavy components and you can provide a strong mounting surface (or are prepared to invest in reinforcement), this VEVOR swing arm is a pragmatic, heavy‑duty option that balances cost and capability. For lighter or mobile needs, consider one of the alternatives outlined above.

Note: prices and offers can change. Always verify the latest product details, price and availability on the retailer’s page before buying.
