VEVOR SBR16 1000mm Linear Guide Rail Set review: compact rails for DIY CNC projects

Overview

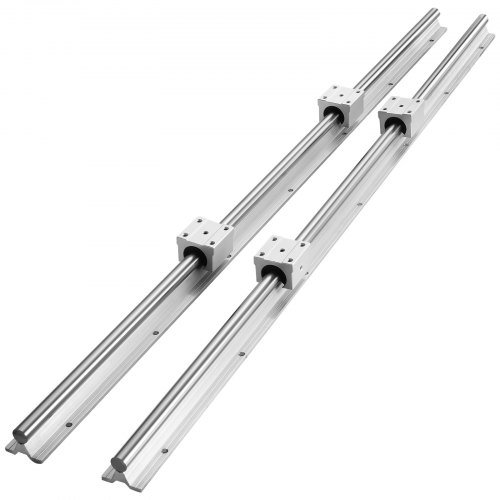

The VEVOR Linear Guide Rail Set (SBR16, 1000 mm) is a ready-made kit that combines two 39.4-inch guide rails with four SBR16UU slide blocks. It’s aimed squarely at hobbyists and small workshop builders who need straight, low-friction linear motion for CNC routers, small gantries, 3D printers and other automated machines. The rails are made from high carbon steel with aluminium end fittings and are supplied with mounting-hole spacing and load figures intended to help you plan an installation.

Who is this best for?

This set suits a range of practical use cases where compact, repeatable linear travel is required. Typical users include:

• DIY CNC builders upgrading an axis or building a new desktop/benchtop router.
• Hobbyists and makers constructing light automation rigs, pick-and-place fixtures or simple linear slides.
• Workshop owners who need inexpensive replacement rails for prototypes or short-run machines.

It’s less appropriate for heavy industrial machines or large gantries where much higher stiffness and load capacity are required. If you’re planning to move large masses or expect sustained heavy side loads, consider a larger-diameter rail series designed for industrial duty.

Key features

• Two SBR16 cylindrical guide rails, each 1000 mm (39.4 in) long.
• Four SBR16UU slide blocks (45 x 45 x 33 mm each) to run on the rails.
• Shaft diameter: 16 mm (Φ16).
• Material: high carbon steel rails with aluminium end pieces.
• Dynamic load per block: 774 N; static load per block: 1180 N.
• Mounting hole pitch – distances A and B: 32 mm and 30 mm respectively (useful when planning bolt patterns).
• Product length and package info supplied; net weight approx 5.2 kg for the set.

Practical evaluation

The kit is straightforward in concept: two straight cylindrical rails serve as the running surface and the slide blocks house plain bearings that run along the shafts. For many builds the SBR16 size hits a useful sweet spot — stronger and stiffer than tiny 8–12 mm shafts but still compact enough to fit into tighter frames and lighter gantries.

The supplied load figures (dynamic 774 N, static 1180 N per block) give a reasonable indication of capability for light- to medium-duty applications such as router carriages, small Z-axes and cross-slides. Bear in mind these values are per block — how you arrange the blocks (two per axis, opposed pairs, etc.) and how the carriage is supported will influence real-world stiffness and load capacity.

Mounting-hole spacings are useful to plan your bed or bracket drilling. The distances labelled A (32 mm) and B (30 mm) describe the pitch of the mounting holes on the rail. Before you commit to cutting or welding any frame components, check those dimensions against your carriage and mounting hardware so the rail holes line up with your build.

Materials and corrosion resistance are mentioned in the product description. High carbon steel gives a wear-resistant running surface, and the aluminium components help keep weight down. For workshop environments that produce dust, chips or coolant, think about sealing and regular lubrication to protect the rail surface and prolong service life.

Strengths

• Value for money: the package contains two full-length rails plus four slide blocks, which is convenient for building two axes or one axis with extra blocks for stability.
• Compact and versatile: SBR16 is well suited to desktop and small workshop machines where space is limited but repeatable linear motion is needed.
• Compared mounting hole pitches make integration into a frame easier and reduce guesswork when drilling or fabricating mounting plates.
• Decent load figures for light to moderate duties; suitable for many CNC router applications when used correctly.
• Relatively lightweight for its length, simplifying handling and assembly.

Limitations

SBR16 rails are not a one-size-fits-all solution. The 16 mm shaft diameter limits ultimate stiffness compared with larger linear rail systems; if your build needs to resist heavy torques, sustain long unsupported spans, or carry very heavy payloads, heavier-duty rails would be a better fit.

The product description emphasises corrosion resistance, but these rails are likely not fully sealed ball-bearing rails designed for dirty or wet industrial environments. If your application generates metal chips, heavy dust or uses coolant, you should plan for additional protection such as bellows, covers or frequent cleaning and lubrication to avoid premature wear.

Also check bolt diameter and head clearance before mounting — although mounting-hole spacings are provided, the actual bolt size and whether holes are countersunk for flat-head screws is something to confirm with the retailer or by measuring the parts on arrival.

Installation and setup tips

Even though the kit is straightforward, a few practical points will save time and improve performance:

• Prepare a flat, rigid mounting surface. Rails installed on warped or thin plate will give poor alignment and binding. A thick, flat base or a boxed section frame works best.
• Align rails carefully. Use straight edges or a dial indicator to ensure the rails are parallel and coplanar; misalignment is a common cause of binding and uneven wear.
• Use appropriate fasteners. Check the hole diameter and choose bolts that sit correctly in the rail slots or holes without leaving play. Threadlocker is useful on bolts that might loosen under vibration, but avoid over-tightening which can distort the rail.
• Position slide blocks for stability. Where possible use opposing pairs or use three/four blocks per carriage to reduce rotation and increase load capacity. For a gantry, mounting two blocks side-by-side on each rail increases stiffness.
• Lubricate and protect. Regular light lubrication and dust protection will extend service life. Consider bellows or simple covers in chip-prone environments.

Maintenance advice

Maintenance is basic but important. Keep rails free from chips and debris, lubricate the slide blocks periodically with a suitable light machine oil or grease recommended for linear bearings, and inspect for nicks or galling on the shaft surface. Replace any block that shows significant play or uneven movement to avoid creating damage on the shaft.

Pricing and value

As supplied, the kit presents itself as an economical way to add linear motion to DIY machines: two full-length rails plus four bearing blocks in one package avoids the need to source components separately. The guide price provided with the product listing gives an indication of its budget positioning, but actual prices and offers can vary by retailer and over time.

Before buying, check the latest retailer page for availability, current price and any shipping considerations. Factor in any additional hardware you’ll need (mounting bolts, carriages, protective covers, lubricant) when comparing value with other rail systems or custom solutions.

Alternatives to consider

If you’re evaluating options, a few alternative directions to consider depending on your priorities:

• If you need higher stiffness and load capacity, look for larger-diameter rails (for example SBR20 or SBR25 series) or square profile linear rails with recirculating ball bearings for higher precision and load ratings.
• If your work environment is dirty or wet, sealed linear guides with protective wipers or covered block designs are worth the extra cost to avoid frequent maintenance and reduce downtime.
• For very high precision and rigidity in professional or industrial applications, consider precision linear rails and carriages (profile rails) rather than cylindrical shaft-and-bushing systems.

Final verdict

The VEVOR SBR16 1000 mm Linear Guide Rail Set is a sensible, wallet-friendly choice for hobbyists and small workshop builders needing straightforward, repeatable linear motion on a budget. It’s compact, reasonably rigid for its size and supplied with useful mounting information, making it a tidy option for CNC routers, small gantries and many automation tasks.

Keep in mind the limits of the 16 mm shaft size: it’s best for light-to-medium loads and projects where space and cost are constraints. If your design demands heavier loads, minimal deflection over long spans or an industrial duty cycle, consider stepping up to a larger or more robust rail type. For routine workshop use and careful installation, however, this kit delivers the basic performance and convenience many builders need.

Note: offers and prices can change — check the retailer page for the latest price and availability before you buy.
